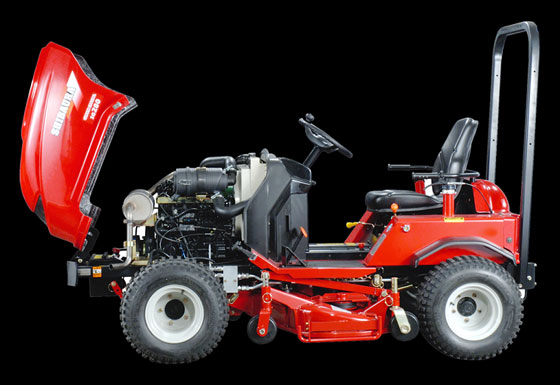

SG280E Slope Mower
Description of SG280E
Ride-on Slope Mower SG280 is designed for mowing on slopes to enable you to finish your jobs faster and easier. A high-efficiency Shibaura N843 engine complies with exhaust emission regulations.
The mower is equipped with a horizontal rolling seat capable of adjusting to an incline of up to 25 degrees for your quick and easy operation.
Broadcast Spreader
Grass Catcher
Sweeper
Turbo Blower
Feature
- High-displacement, high-output Shibaura N843 diesel engine complying with exhaust emission regulations.
- Optimal functions for easy operation and maneuverability.
- Low centre of gravity for stability and safety.
- Equipped with horizontal rolling seat capable of adjusting to an incline of up to 25 degrees.
- Wide variety of grass collectors to suit individual needs.
Specifications
| Model | SG280E |
|---|---|
| Drive | HST (Selectable 2WD / 4WD) |
| Dimensions&Weight | |
| Length (mm) | 2495 |
| Width (mm) | 1590 / 1910(With mower) |
| Height (mm) | 1200(Steering wheel) / 1730(Sunshade frame) |
| Wheelbase(mm) | 1500 |
| Front Tires | 21 x 11.00 - 10 |
| Rear Tires | 21 x 11.00 - 10 |
| Front track tread(mm) | 1310 |
| Rear track tread(mm) | 1310 |
| Lowest ground clearance(mm) | 140 |
| Weight(kg) | 770 / 930(With mower) |
| Engine | |
| MODEL | Shibaura N843 |
| Type | 3-Cylinder 4-Cycle water cooled diesel engine |
| Displacement(cc) | 1496 |
| Power [kW (PS) / rpm] | 20.6 (28) / 2500 |
| Battery | 75D26L |
| Fuel tank Capacity (L) | 26 |
| Vehicle | |
| Brake | Drum |
| Steering | Hydraulic power steering |
| Shift | L:(4WD) H:(2WD) |
| Speed / Forward(km/h) | L:0～9.0 H:0～18.0 |
| Speed / Reverse(km/h) | L:0～6.0 H:0～12.0 |
| Mower | |
| MODEL | MM60DSG |
| Width of cut(mm) | 1524 |
| Height of cut (mm) | 34～110 |
| Number of Blades | 3 |
| Capacity(a/h) | 64 (Speed 6.0km/h / Efficiency0.7) |
| Model | SG280E | SG280EM | SG280ET | SG280EHD |
|---|---|---|---|---|
| Hydraulic manifold | - | Standard | Standard | Standard |
| Three point hitch | - | - | Standard | - |
| Hydraulic high dump | - | - | - | Standard |
| Grass catcher S330SG | ■(○) | ■ | ■(▲) | - |
| Cyclone sweeper CS500SG | ■(○＋●) | ■(●) | ■ | - |
| High dump VS700SG | ■(○) | ■ | ■(▲) | Standard |
| Broadcaster MBC1070SH | ■(○＋●) | ■(●) | ■ | - |
| Turbo blower TBL283SG | ■(○＋●) | ■(●) | ■ | - |
■…Attachable
○…Need M kit to attach
●…Need 3 point hitch
▲…Need to remove 3 point hitch to attach adapter
