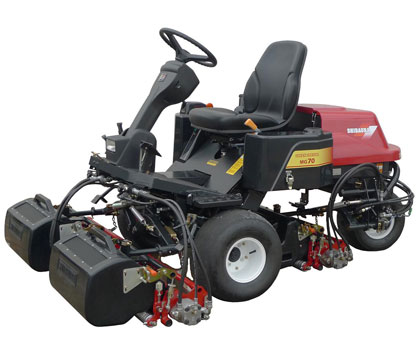

MG70G Ride-on Greens Mower
Description of MG70G
The Ride-on Greens Mower MG70G provides the experienced operator with comfort and superb performance to ensure perfect greens.
We offer precision at the lightest weight, satisfying every requirement of golf course professionals.
Feature
- The combined effect of its new light-weight design and 19 inch-wide tires minimizes ground pressure (0.58kg/cm2).
- Reel swing-out system for easy maintenance and easy operation of center reel.
- Fully open engine hood for easy maintenance and repair.
- A high-lift reel mechanism and compact size enables the MG70G to move around smoothly with a tight turning radius.
- The world's first Offset Moving System for a wide variety of turf situations: adjustable clearance between bedknife and reel (offset) by changing the bedknife angles.
Specifications
| Model | MG70G |
|---|---|
| Dimensions&Weight | |
| Length (mm) | 2120 |
| Width | 1840 |
| Dry weight | 397kg |
| Engine | |
| Type | Air-cooled 4 cycle gasoline engine |
| Displacement [cm3 (cc)] | 627 |
| Power [kW (PS) / rpm] | 15.7 (21) / 3600 |
| Fuel tank Capacity (L) | 20 |
| Vehicle | |
| Traction Drive | HST - 2WD |
| Ground speed (km/h) | Forward:0 - 13.5 / Reverse:0 - 6 |
| Reels | |
| Number of Blades | 7 - 9 - 11 |
| F Rollers | Φ80 Grouped |
| R Rollers | Φ76.3 Solid |
| Total width of cut (mm) | 1525 |
| Height of cut (mm) | 3(2.5)～24 |
